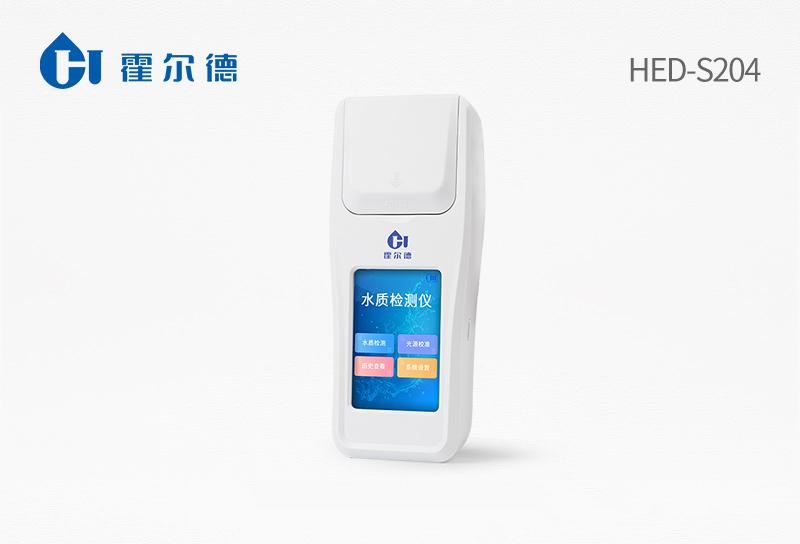

Hydrogen peroxide detector

1. Equipment Introduction:

The water quality hydrogen peroxide/hydrogen peroxide detector is designed and manufactured with reference to the standard "GB5009.226-2016 Titanium Salt Colorimetry", which mainly detects the content of hydrogen peroxide in water quality; this instrument has both intelligent data analysis functions, charts, lists display data, and the analysis is clear at a glance; high-definition color LCD touch screen, Android smart operating system, Chinese display interface, Chinese and English keyboards, humanized operation, and easier to use.

2. Wide application:

It can be widely used in the detection of wastewater in various industries (industrial wastewater, urban sewage, domestic sewage and surface water in rivers and lakes), which can meet the various needs of different users. It can be used in chemical, petroleum, coking, papermaking, metallurgy, brewing, medicine and other industrial wastewater and various domestic sewage monitoring applications.

3. Functional features:

1. Adopting the new Android 7.1.1 intelligent operating system, humanized Chinese operating interface, faster operation speed and stronger stability.

2. 8-inch LCD touch screen display, humanized Chinese operating interface, intuitive and simple reading.

3. The precision colorimetric cell design and consistent light source can solve the problem of error in the test results caused by light source error, and the test results are more accurate.

4. The light source adopts imported ultra-bright light-emitting diodes, and the brightness of the light source can be automatically adjusted and calibrated.

5. Supports colorimetric methods such as 10mm, 30mm, 50mm dish colorimetry and φ16mm tube colorimetry, with multiple choices to ensure the accuracy of measurement;

6. It has wireless communication function, supports WIFI, RJ45, mobile phone hotspot network transmission, and the test data can also be exported through a USB flash drive;

7. Multifunctional sample management, samples can be named in Chinese and English, which is convenient for sample recording and data storage;

8. The instrument can permanently store 8 million sets of data. To facilitate the search of large amounts of data, it can be retrieved by time and analyzed at will;

9. Supports HDMI output, which is convenient for user training, explanation, and large-screen display.

10. The instrument has a regulatory cloud platform, and data can be uploaded through the local area network and the Internet, and can also be connected and uploaded to the platform of the environmental regulatory department.

11. Built-in thermal line printer, the content on the print paper can be freely selected (including QR code printing);

12. AC 220V, optional 6ah large-capacity rechargeable lithium battery, convenient for outdoor mobile testing;

13. Built-in teaching demonstration video, users can watch the operation video in the instrument while performing experimental operations, which is easier to get started.

14. The firmware of the later product can be upgraded.

3. Technical parameters:

Indication error: ≤±5%;

Instrument stability: <0.5%;

Instrument repeatability: <0.5%;

Photochemical stability: numerical drift within 20min ≤0.002A (100,000 hours of life);

Reference standard: GB5009.226-2016 Titanium salt colorimetry;

Detection range: 0-3.5mg/L;

Lower detection limit: 0.05mg/L;

Colorimetric method: colorimetric tube (16mm digestion colorimetric integrated tube), colorimetric dish (10mm, 30mm, 50mm);

Operating system: Android7.1.1 intelligent operating system;

Operation interface: Chinese or English operation interface;

Display: 8-inch (1024*768 resolution) high-definition color LCD touch screen;

Number of curves: 3 standard curves, and custom standard curves can also be used;

Network interface: USB2.0, HDMI, WiFi, Bluetooth, hotspot, RJ45;

Cloud platform: The instrument is equipped with a monitoring platform, connected to a wired/wireless network, and the test results are directly transmitted to the environmental safety monitoring platform;

Printer: Thermal line printer;

Data storage: 8 million groups, which can be freely called and viewed;

Data export format: Excel table;

Instrument size: 367x243x125mm;

Instrument weight: 5.3kg;

Ambient temperature: (5-40)℃;

Ambient humidity: Relative humidity <85% (no condensation);

Rated power: 10W;

Working power: AC220V±10%/50Hz;

Configurable: large-capacity lithium battery.
