Video Melting Point Apparatus

Model：

HD-RD2

Introduction：

Video Melting Point Apparatus combines precise temperature control and HD video to measure sample melting point and range automatically. Widely used for pharmaceutical, chemical, food and material quality control and research....

Tel icon+86 19053605658 Consultation iconWhatsApp
  • Image and Text Display
  • Technical Specifications
  • Product video

I. Product Introduction

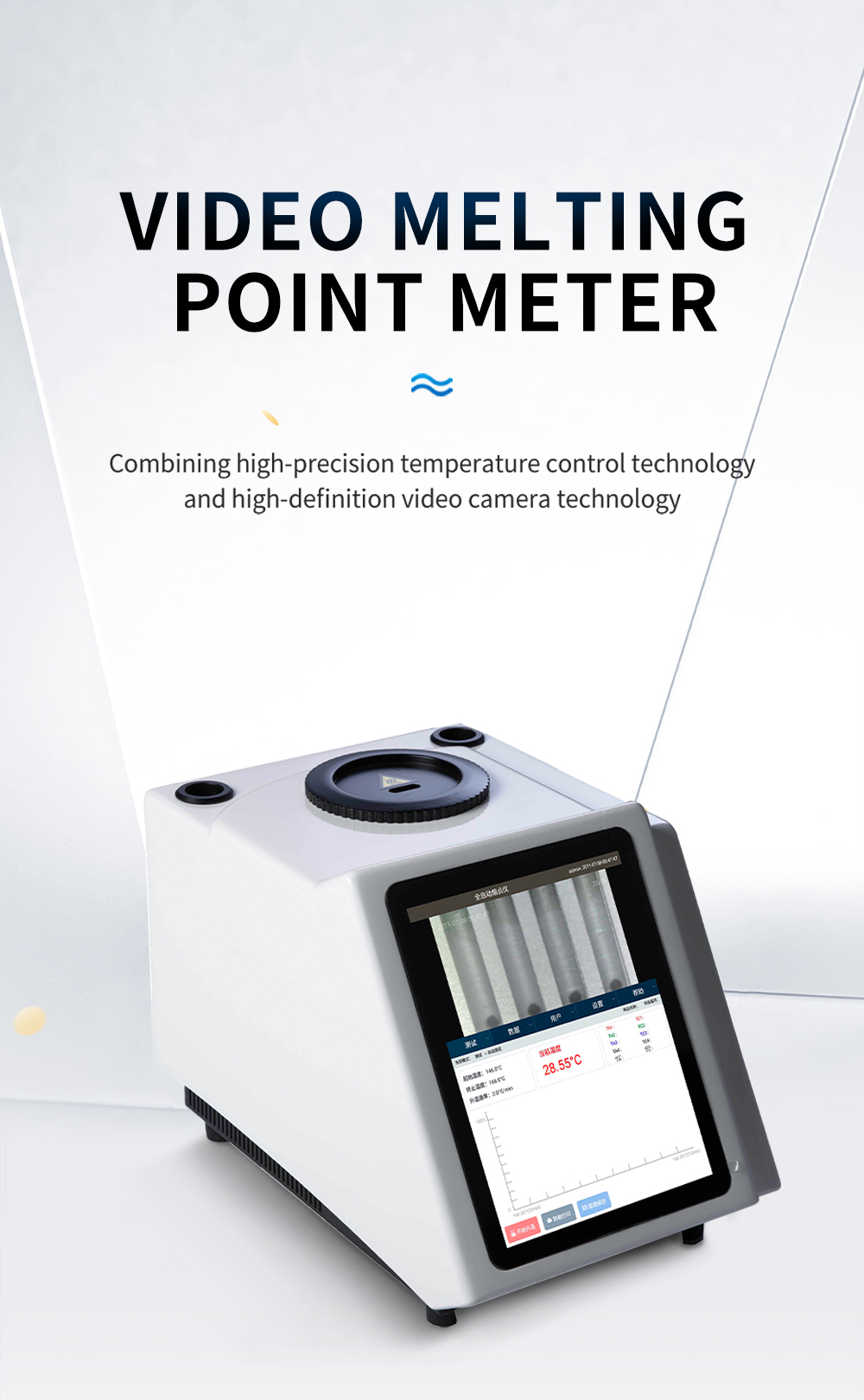

The melting point apparatus perfectly combines high-precision temperature control technology with HD video camera technology. It not only provides users with accurate, stable and reliable test results, but also brings an efficient and convenient testing experience. The HD video makes it convenient and clear to observe the whole melting process of the sample, with automatic detection and real-time pattern display, so users can accurately measure the sample melting point and melting range.

II. Efficiency-Improving Innovations

1. Integrated automation for one-key determination.

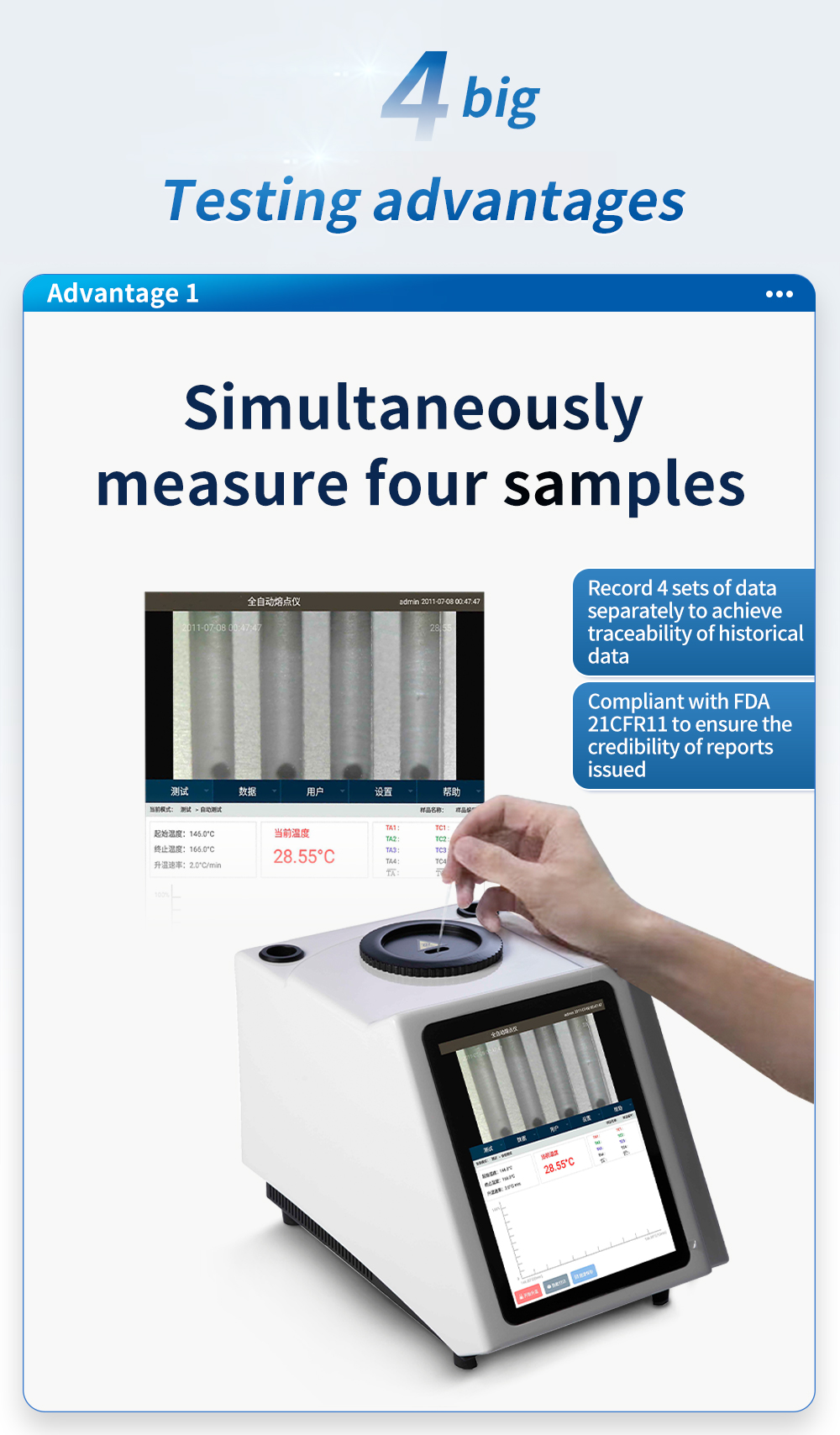

2. Four samples processed at one time.

3. HD video replaces the traditional microscope for higher visual accuracy.

4. Semi-automatic recording of the melting range, initial melting and final melting.

5. Data can be printed directly via a printer.

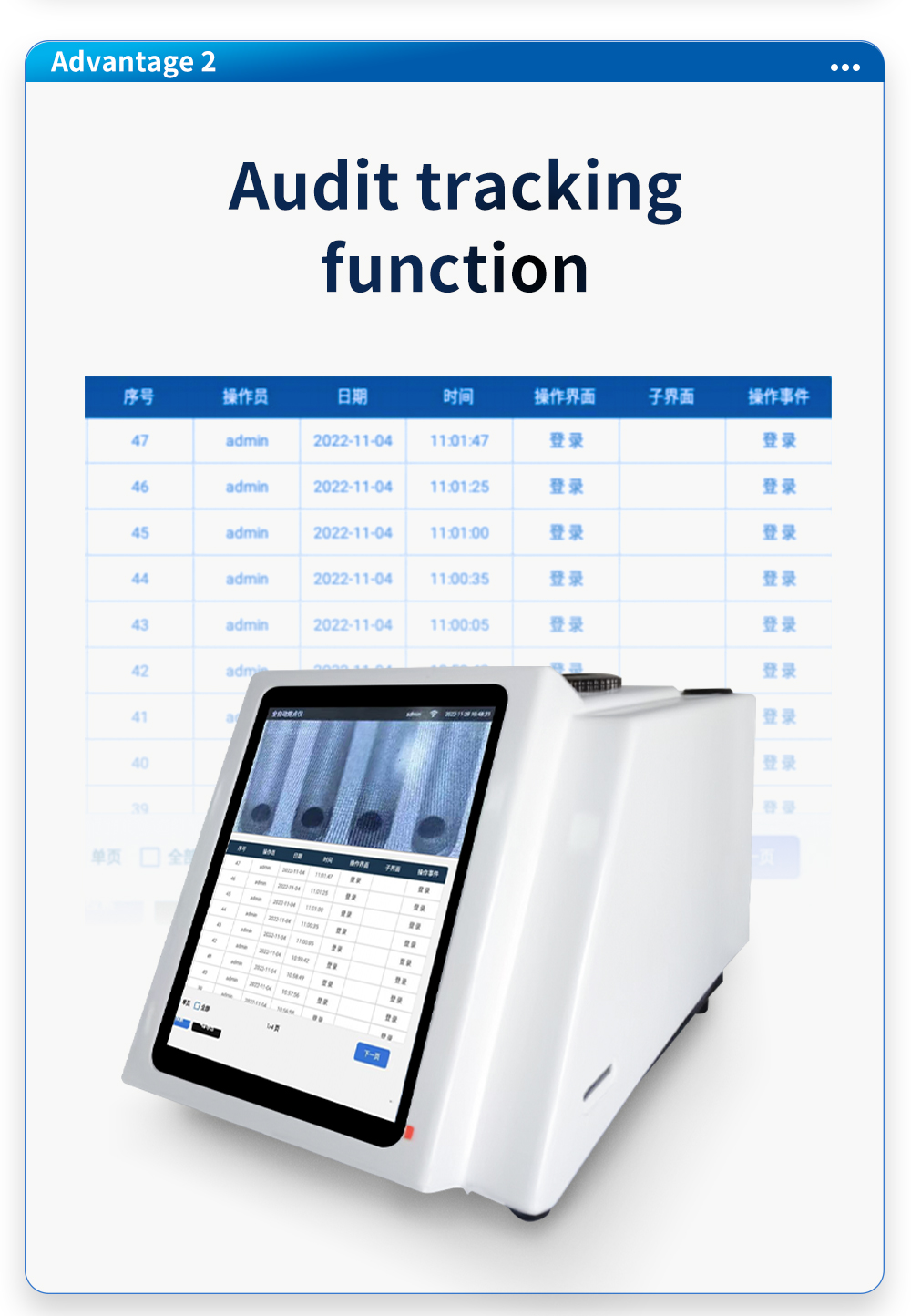

6. Complies with 21 CFR Part 11, audit trail, pharmacopoeia and electronic signature.

7. Complies with GLP requirements.

III. Application Fields

Melting point apparatus occupies an important position in the chemical industry and pharmaceutical research. It is an indispensable instrument for the production of foods, drugs, spices, dyes and other organic crystalline substances.

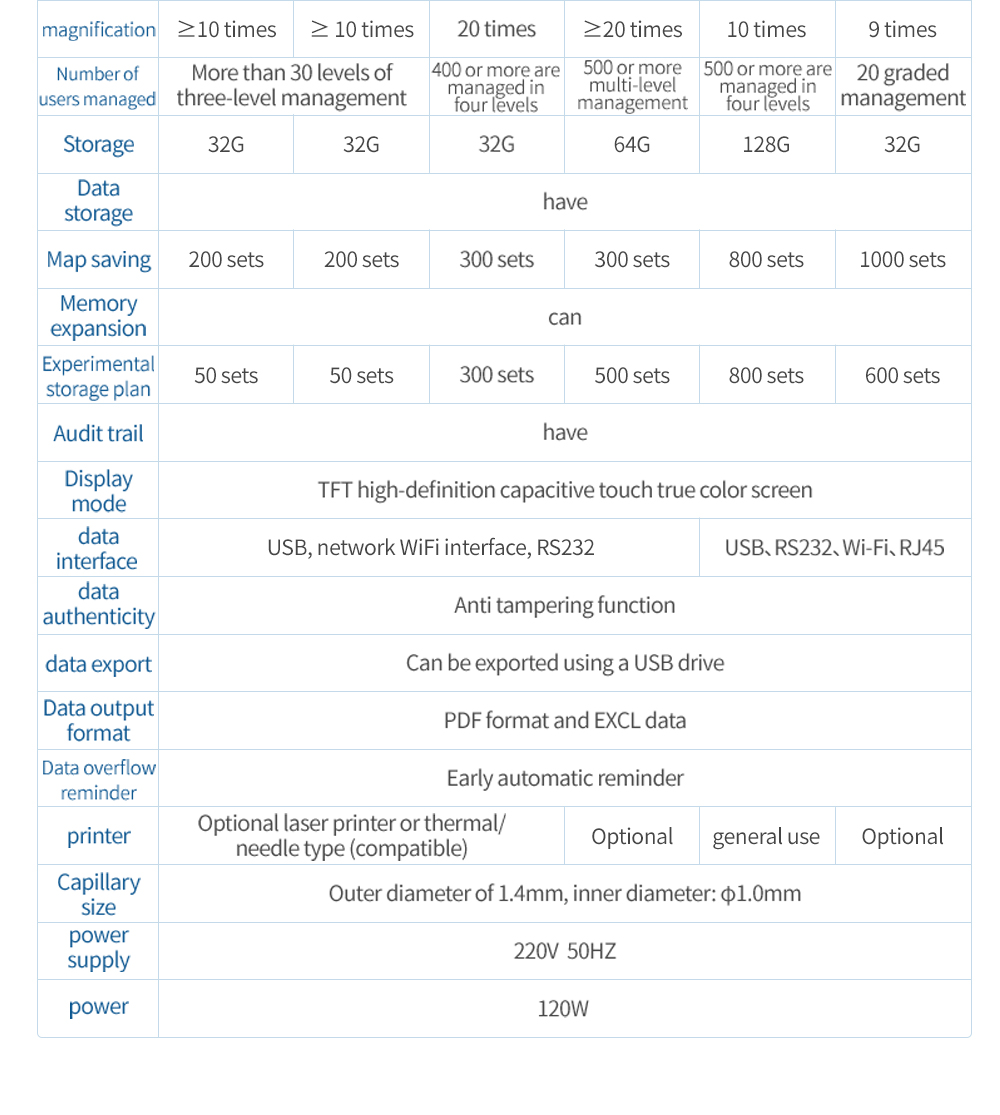

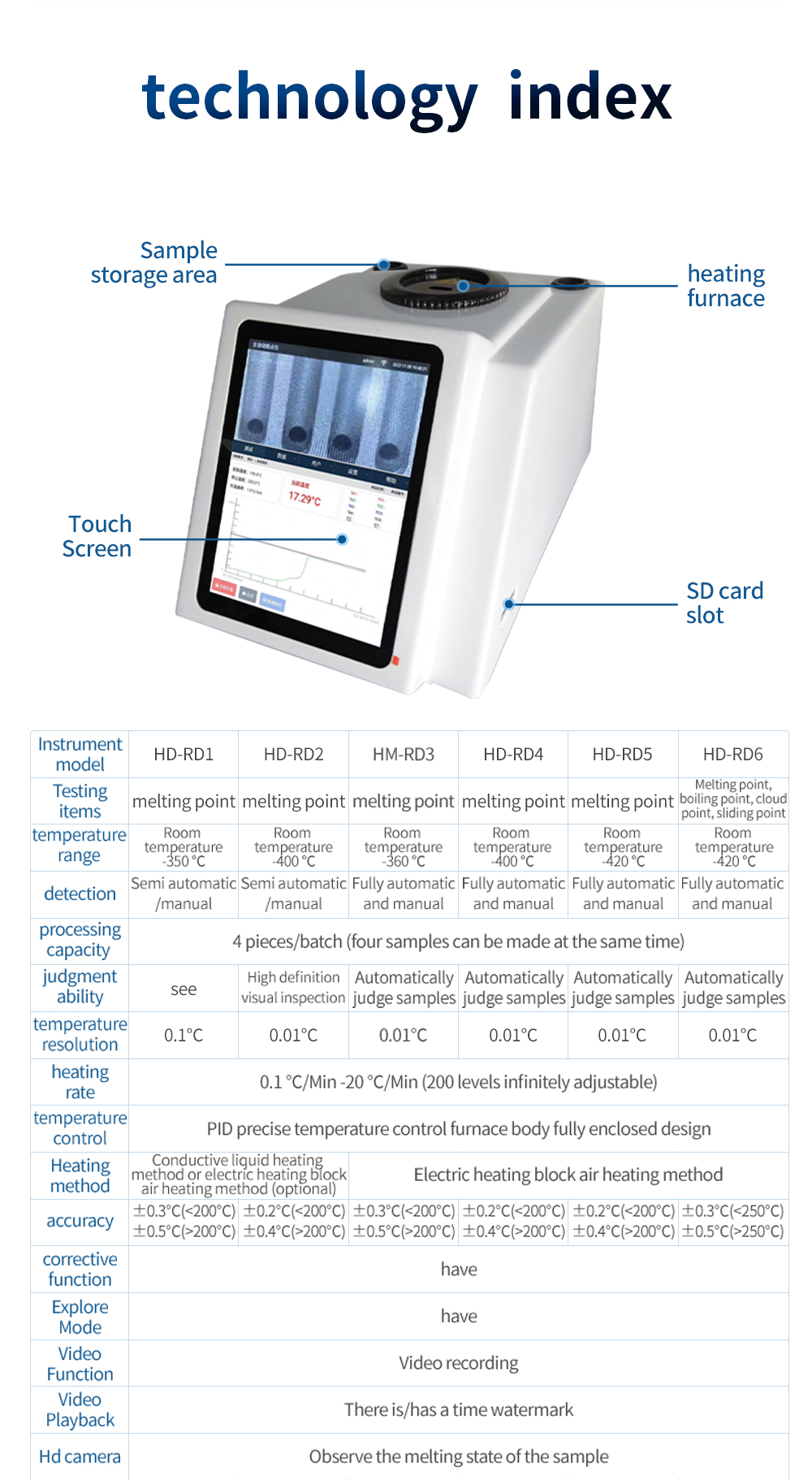

IV. Main Technical Specifications

Temperature rangeRoom temperature - 400 °C
Detection modeManual
Processing capacity4 samples/batch (four samples simultaneously)
Judgment capabilityVideo visual inspection
Temperature resolution0.01 °C
Heating rate0.1 °C/min - 20 °C/min (200 steps, stepless adjustable)
Temperature controlPID precise temperature control, fully sealed furnace design
Heating methodHeat transfer liquid heating or electric heating block air heating (optional)
Heating rate resolution0.1 °C
Accuracy±0.2 °C (<200 °C); ±0.4 °C (>200 °C)
Repeatability±0.1 °C melting point repeatability at 0.1 °C/min
Calibration functionYes
Exploration modeYes
Video functionPhoto / video
Video playbackYes / with time watermark
HD cameraObserves the melting state of the sample
Magnification≥10

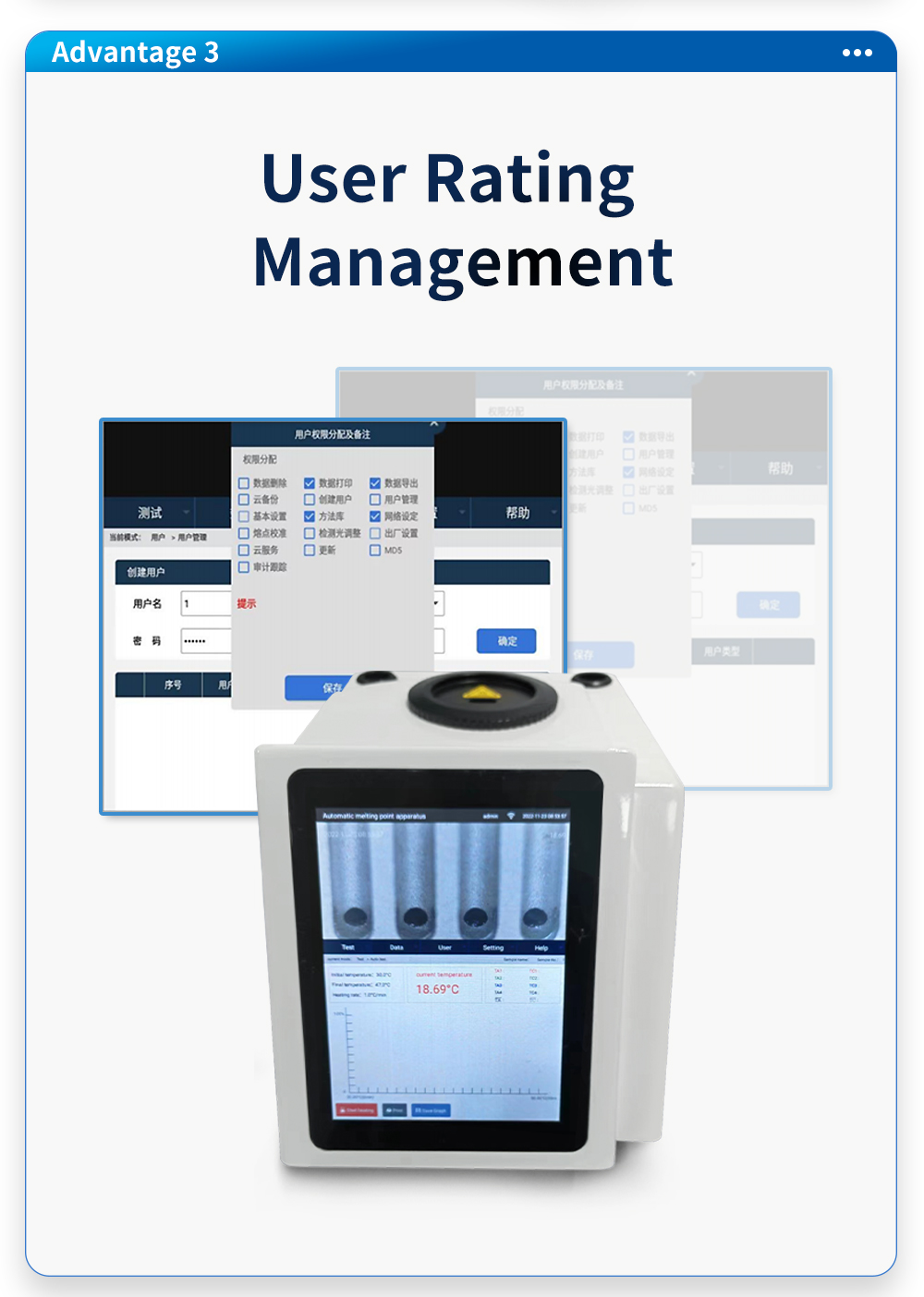

User managementMore than 30, three-level management
Storage32 GB hard disk, ≥2 GB memory
Test methodsYes
Data saveYes
Pattern save200 sets
Memory expansionSupported
Audit trailYes
NetworkWireless WiFi

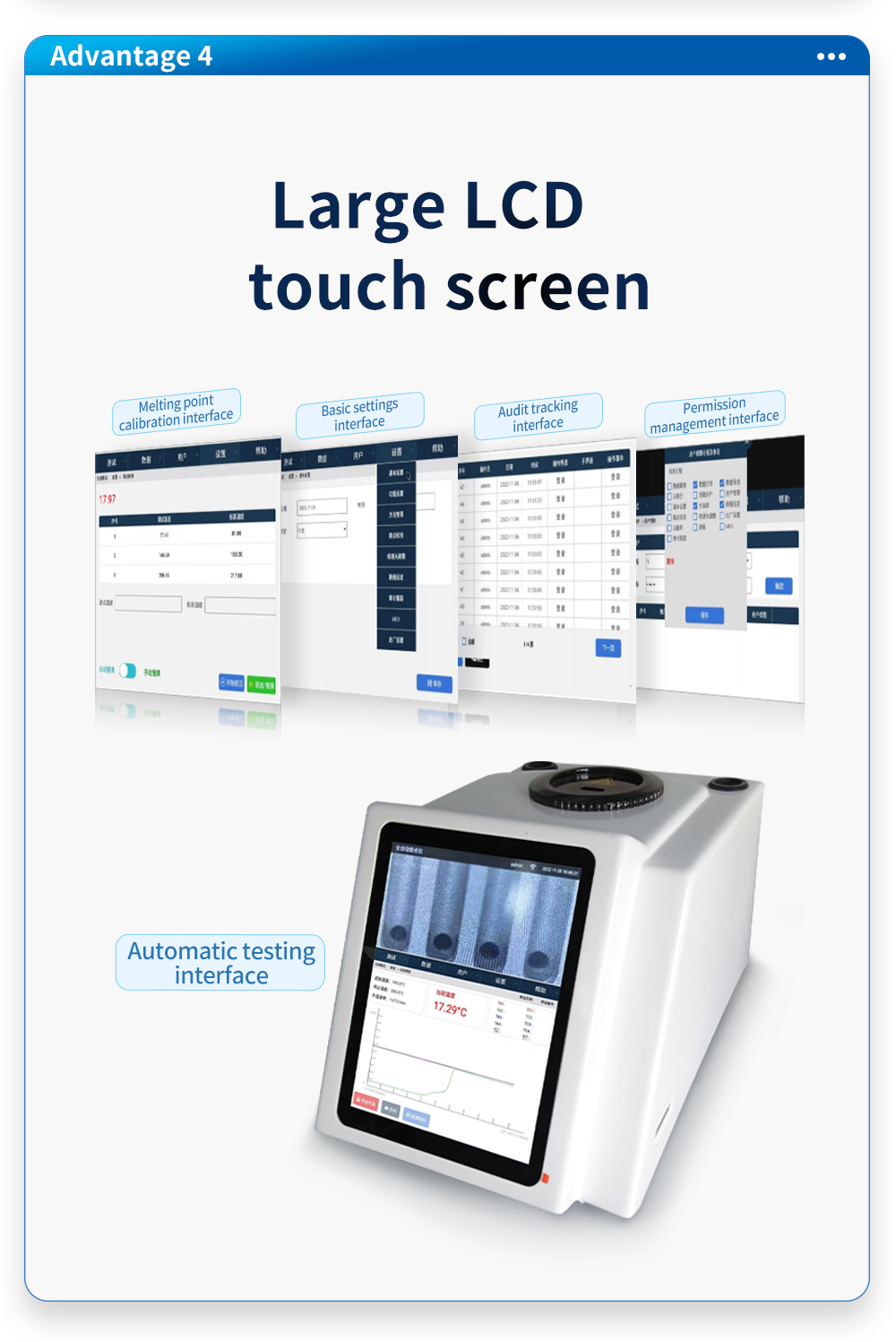

Display8-inch HD color screen
Data interfaceUSB, WiFi, RS232
Data authenticityTamper-proof function
Data exportExportable via USB flash drive
Data output formatPDF and Excel data
Data overflow reminderAutomatic advance reminder
PrinterOptional laser or thermal/dot-matrix (compatible)
Capillary sizeOuter diameter φ1.4 mm, inner diameter φ1.0 mm
Power supply220 V 50 Hz, power 120 W
The video is currently in production, please stay tuned......
