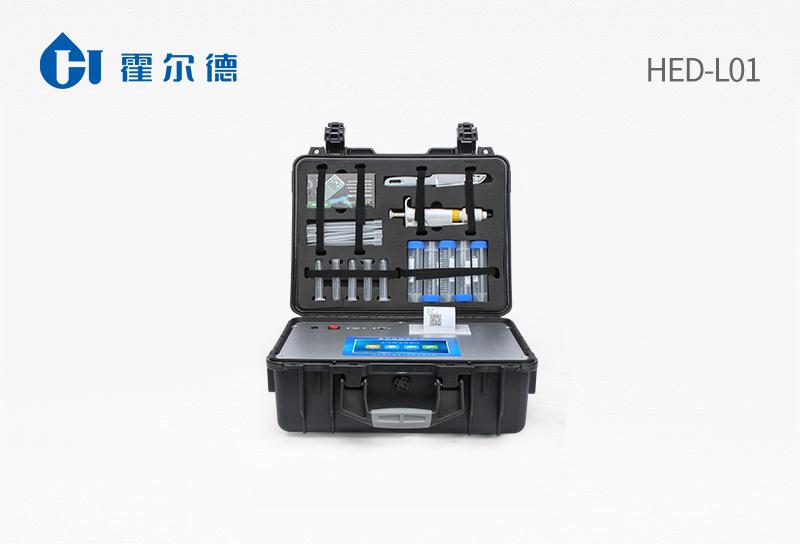

Mycotoxin Detector

Product Introduction

The mycotoxin detector uses the technical principle of competitive inhibition immunochromatography. It analyzes the mycotoxin residues in the sample to be tested by combining the test object with the antibody. It can quickly detect aflatoxin B1, zearalenone, vomitoxin, T2 toxin, ochratoxin, and fumonisin in grains, feeds, cereals, edible oils, and condiments such as corn, rice, wheat, barley, brown rice, bran, rice, soybean meal, rice bran, and feed.

Product Use:

The mycotoxin detector is an integrated rapid detection and analysis device, suitable for grain and oil systems, grain stations, grain and oil monitoring centers, grain and oil feed production and processing, food processing and trade, self-inspection by livestock and poultry farmers, and rapid market screening by industrial and commercial quality supervision departments.

Product Performance:

1. Integrated portable rapid detection equipment, the chassis adopts industrial-grade ABS engineering plastic box, which is easy to carry, stable and durable, and meets the needs of on-site and mobile detection.

2. Android smart operating system, adopts more efficient and user-friendly operation, and the main control adopts a multi-core processor, which runs faster and more stable.

3. Automatically judge whether the sample is qualified, the test results are more intuitive, and multiple samples can be tested continuously, cycled, and released and tested.

4. The instrument has a built-in powerful database, with a menu library of various sample names, classified management, and can flexibly select test samples, test indicators, test units and other information, and can edit and enter sample names, test indicators, test units and other information as needed, add or delete names, and save them in the sample database.

6. The instrument has wifi networking function, 4G signal GPRS remote transmission function, and can insert a mobile phone card to realize data remote transmission. The data can be quickly uploaded to the computer and server supervision platform for data management and statistics.

7. The instrument has a high degree of intelligence and has a self-test function: it has power-on self-test and zero adjustment functions, and has an automatic detection repeatability function.

8. A new generation of high-speed thermal printers can automatically print test reports and QR codes after the test is completed. The printed report contains the tested substance, qualified or unqualified, test unit, inspected unit, inspector, and test time.

9. The instrument has a supervision platform, and data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning.

10. It can realize the detection of all test items under the same software, and the test results can be intuitively displayed through the same window.

11. Immunochromatographic detection module detection method: orbital automatic transmission scanning, and the test card is automatically exited after the test is completed.

12. CT line automatic identification, no manual adjustment required.

13. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

14. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

15. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operation.

16. The instrument has the functions of recalibration, locking, and restoring factory settings.

17. Support U disk storage. The result judgment line can be modified, the control value calibration value can be saved, and the data will not be lost during power failure.

18. Compatible with all test cards on the market, the use of consumables is not restricted, and the user experience is greatly enhanced.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88Ghz, faster operation speed and stronger stability.

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. AC and DC dual-use, DC 12V power supply, can be connected to the vehicle power supply, and can be equipped with 6ah large-capacity rechargeable lithium battery, which is convenient for outdoor flow testing.

4. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, and no temperature drift phenomenon of light source for long-term continuous operation. .

7. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

8. Uninterrupted sampling and continuous detection

9. Sample numbers are automatically accumulated.

10. The detection items can be expanded.

11. The test results can be printed and uploaded in batches.

12. The test results are Excel tables, which can be copied by connecting to a computer.

13. Storage capacity of 200,000 test results

14. Standard USB interface, driver-free installation.

16. Firmware upgradeable

Technical parameters:

Deoxynivalenol:

Detection range: 100-5000ug/kg Sensitivity: 25ug/kg

Aflatoxin:

Detection range: 10-50ug/kg Sensitivity: 0.5ug/kg

Zealanone:

Detection range: 10-1000ug/kg Sensitivity: 2ug/kg

Ochratoxin:

Detection range: 10-500ug/kg Sensitivity: 5ug/kg

T2 toxin:

Detection range: 100-5000ug/kg Sensitivity: 25ug/kg

Fumonisin:

Detection range: 100-5000ug/kg Sensitivity: 25ug/kg
